How to charge the transformer of electric vehicle

With the deep-rooted concept of environmental protection and the continuous development of new energy technologies, electric vehicles (EV) have become an important development direction of future transportation. However, many people don't know much about the charging principle of electric vehicles, especially the role of transformers in it. This paper will focus on the theme of "how to charge the transformer of electric vehicle", and analyze the function and working principle of the transformer in the charging process of electric vehicle in detail.

First of all, we need to clarify a concept: the electric vehicle itself is not directly charged by a transformer, but connected to the power grid through a charging pile or on-board charger, and in this process, the transformer in the power system plays a vital role.

First, the basic role of transformer

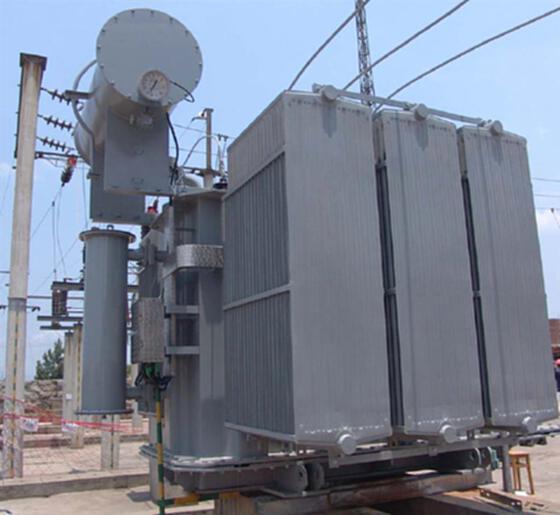

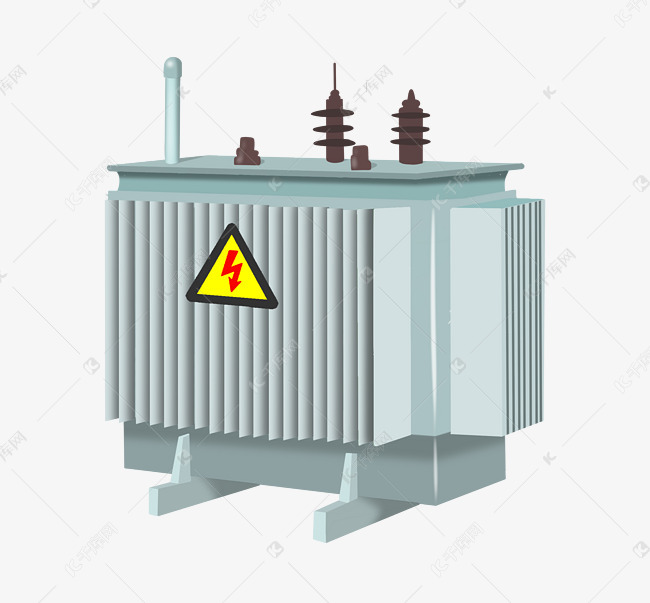

Transformer is an electrical device used to change AC voltage. It converts one voltage level into another through the principle of electromagnetic induction to meet the power demand of different equipment. In the charging system of electric vehicles, transformers are usually used to reduce the voltage transmitted by high-voltage transmission lines to a level suitable for charging equipment.

Second, the application of transformer in electric vehicle charging system

In public charging piles or household charging piles, it is usually connected to lines with different voltage levels in the power grid. For example, the city's high-voltage power grid may provide 10kV (kilovolts), but the battery system of electric vehicles can usually only accept 400V or less. This requires a transformer to complete the voltage conversion.

The specific process is as follows:

1. High-voltage grid power supply: the current is output from the substation and reaches the charging station through the transmission line.

2. Step-down transformer treatment: the high-voltage current reaching the charging station is converted into low-voltage current suitable for charging piles through the transformer.

3. Rectification and control of the charging pile: The alternating current reduced by the transformer needs to be converted into direct current through the rectification device inside the charging pile and then transmitted to the battery of the electric vehicle through the control system.

4. Vehicle-side adjustment: Some electric vehicles are equipped with on-board charger (OBC), and the current can be further adjusted to match the charging demand of the battery.

Third, the transformer configuration in different types of charging piles

According to different charging speeds, charging piles for electric vehicles are mainly divided into AC slow charging piles and DC fast charging piles:

-AC charging pile: 220V AC is generally used, which is usually suitable for home or office. In this system, the transformer plays a relatively small role because the voltage itself is already low.

-DC fast charging pile: This charging pile can provide tens to hundreds of kilowatts of power, and is usually connected to the high-voltage power grid. Therefore, a special transformer must be equipped to realize the efficient conversion from high voltage to low voltage to ensure safe and stable charging efficiency.
　　ourth, the importance of transformer in electric vehicle charging
　　ransformer plays a bridge role in electric vehicle charging system, which not only ensures the efficient transmission of electric energy, but also ensures the safety and stability of charging process. If there is no voltage conversion function of transformer, directly connecting high voltage current to charging equipment may cause equipment damage and even cause safety accidents.

In addition, with the development of high-power fast charging technology, the requirements for transformers are getting higher and higher. Modern electric vehicle charging system is developing towards higher efficiency, miniaturization and intelligence, and transformer technology is also improving, such as using high-frequency transformer to improve energy conversion efficiency.

tag
　　In a word, the transformer plays an indispensable role in the charging system of electric vehicles. Whether it is a city charging station or a home charging pile, transformers are silently providing stable and safe power support for electric vehicles. With the continuous development of the new energy automobile industry, the transformer technology in the future will be continuously optimized to better serve the goal of green travel.
